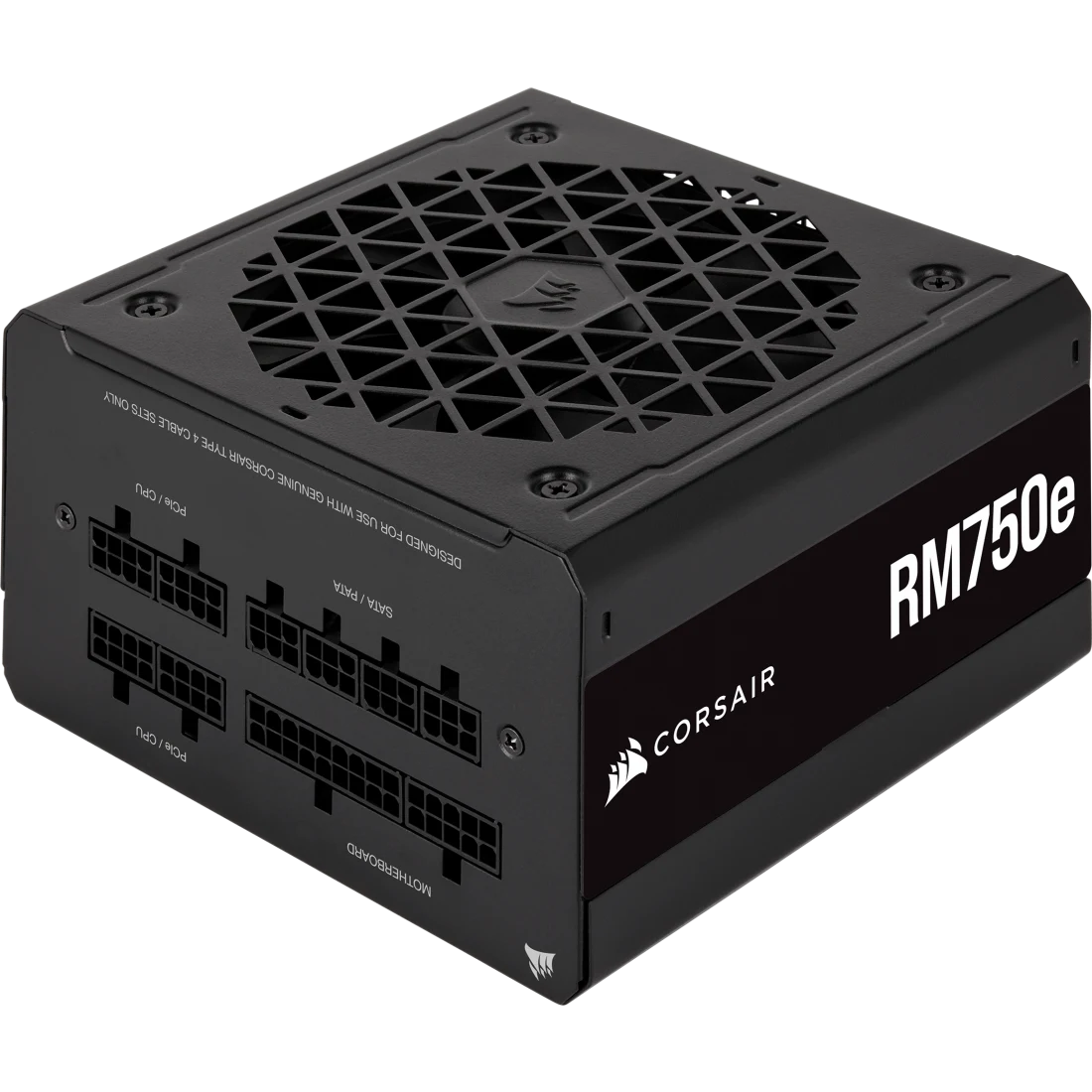

RMe SERIES
Fully Modular Low-Noise ATX Power Supplies
FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
TUNED FOR LOW NOISE OPERATION
A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
With Zero RPM Fan Mode for near-silent operation at lower loads.
LOW NOISE
FAN MODE
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
80 PLUS Gold-Certified
Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.
SEVEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
RM750e POWER TABLE
| Model | RPS0147 | |
|---|---|---|
| Part No. | CP-9020248/75-004601 | |
| AC Input Rating | ||
| AC Input | 100V a.c.-240V a.c. | |
| Input Current | 10A-5A | |
| Frequency | 47~63Hz | |
| Max Load | Max Output | |
| +3.3V | 20A | 150W |
| +5V | 20A | |
| +12V | 62.5A | 750W |
| +5Vsb | 3A | 15W |
| Total Power | 750W | |
RM750e DC CABLE LISTING
| QTY | Cable | Connectors per cable | Total connectors | Connector Spacing | Total length | Cable Type |
|---|---|---|---|---|---|---|
| 1 | Modular ATX Cable (24-PIN) (24)  | 1 | 1 | - | 610mm (± 10mm) | Sleeved |
| 2 | Modular EPS/ATX12V Cable (8-PIN) (4+4)  | 1 | 2 | - | 650mm (± 10mm) | Flat |
| 1 | Modular PCIe Cable (8-PIN) (6+2)/(6+2)  | 2 | 2 | 600mm, 150mm | 750mm (± 10mm) | Flat |
| 1 | Modular PCIe Cable (8-PIN) (6+2) | 1 | 1 | - | 600mm (± 10mm) | Flat |
| 1 | Modular SATA Cable (3 SATA)(straight)  | 3 | 3 | 500mm, 100mm | 700mm (± 10mm) | Flat |
| 1 | Modular SATA Cable (4 SATA)(right angle)  | 4 | 4 | 455mm, 115mm | 800mm (± 10mm) | Flat |
| 1 | Modular PATA Cable (4 PATA)  | 4 | 4 | 450mm, 100mm | 750mm (± 10mm) | Flat |
