CORSAIR POWER SUPPLIES

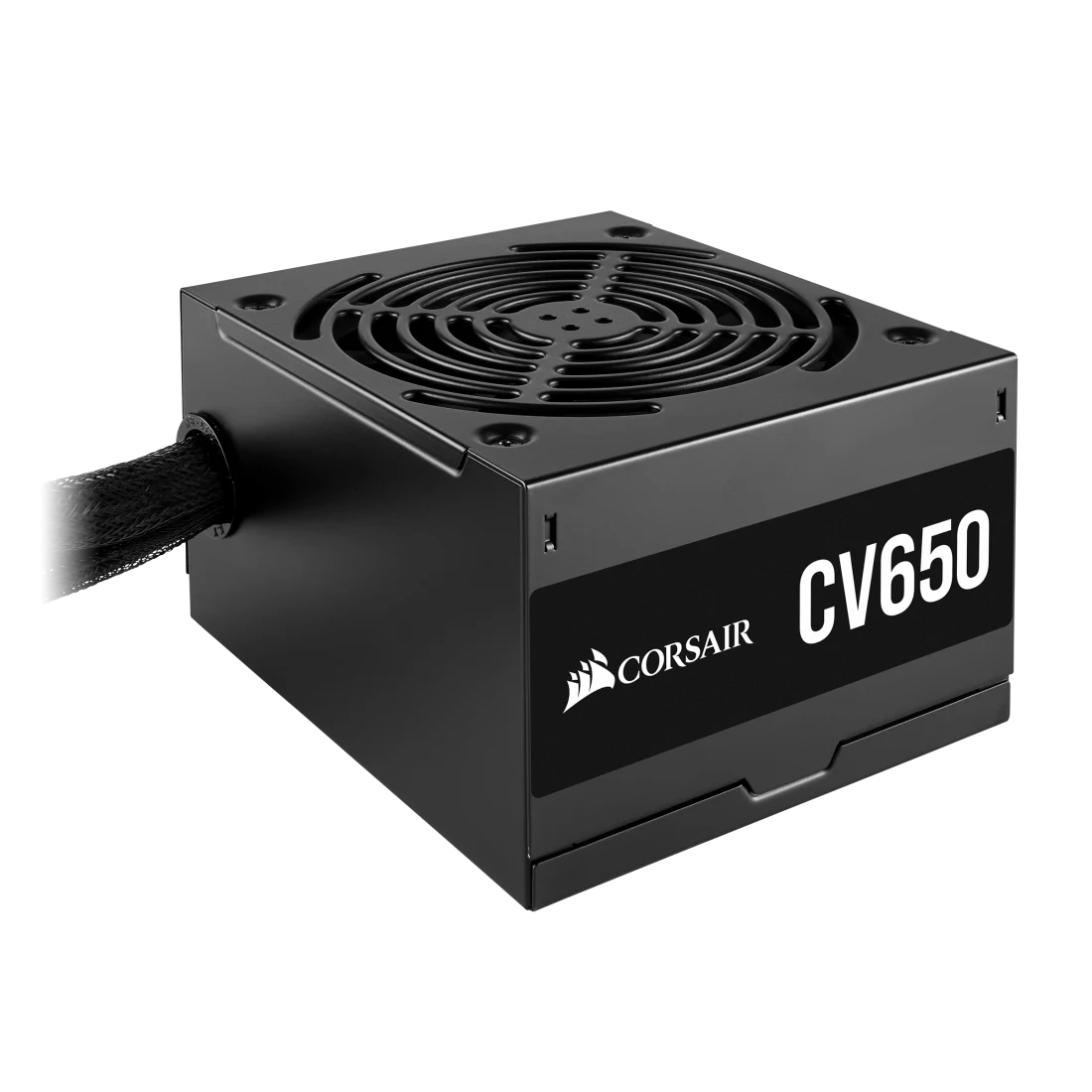

CV SERIES™CV650
POWER SUPPLY
QUIET AND DEPENDABLE 80 PLUS BRONZE EFFICIENCY
ULTRA EFFICIENT
CV series is 80 PLUS Bronze certified, providing up to 88% efficiency for less heat and lower energy costs.
CONTINUOUS, RELIABLE OUTPUT
Like all CORSAIR power supplies, the CV Series does exactly what it says it does: deliver continuous power at full capacity, no matter which wattage variant you choose.
OUTPUT WATTAGE
650W
CV Series PSU
"Peak" rated PSU
Low-Noise Operation
A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.
Compact Design
CV series enclosures are only 125mm long, ensuring an easy fit in almost all modern PC cases.
Stealth Mode
Black sleeved cables and a black powder-coated casing seamlessly fits your PC's style.
*CV550 shown in photo
Guaranteed Reliability
Three-year warranty backed by the CORSAIR global technical support team.
BUILDING A BUDGET PC WITH CORSAIR COMPONENTS
CV650 POWER TABLE
| Model | RPS0128 | |
|---|---|---|
| Part No. | CP-9020236 | |
| AC Input Rating | ||
| AC Input | 100-240V | |
| Input Current | 10A-5A | |
| Frequency | 47~63Hz | |
| Max Load | Max Output | |
| +5V | 20A | 130W |
| +3.3V | 24A | |
| +12V | 52A | 624W |
| -12V | 0.3A | 3.6W |
| +5Vsb | 3A | 15W |
| Total Power | 650W | |
CV650 DC CABLE LISTING
| QTY | Cable | Connectors per cable | Total connectors | Connector Spacing | Total length |
|---|---|---|---|---|---|
| 1 | ATX Cable 24 pin  | 1 | 1 | - | 550mm (± 10mm) |
| 1 | EPS/ATX12V 8 pin (4+4) cable  | 1 | 1 | - | 600mm (± 10mm) |
| 1 | PCIe 8 pin (6+2) cable  | 2 | 2 | 550mm, 120mm | 670mm (± 10mm) |
| 2 | SATA Cable (3 SATA)  | 3 | 6 | 450mm, 120mm, 120mm | 690mm (± 10mm) |
| 1 | SATA-PATA-PATA-FDD  | 4 | 4 | 450mm, 120mm, 120mm, 120mm | 810mm (± 10mm) |
